The Differential Subcellular Localization of Soybean Transcripts

class: center, middle, inverse, title-slide

.title[
# The Differential Subcellular Localization of Soybean Transcripts
]
.subtitle[
## An Additional Regulatory Mechanism of Gene Activity
]
.author[
### <strong>Erik Amézquita</strong>, Sutton Tennant, Sandra Thibivillers, Sai Subhash<br>Benjamin Smith, Samik Bhattacharya, Jasper Kläver, Marc Libault<br>—<br>Division of Plant Science & Technology<br>Department of Mathematics<br>University of Missouri<br>—
]
.date[
### 2025-07-25<br><em>[Manuscript under review]</em>
]

---

# mRNA localization at a sub-cellular level

- Beyond gene expression counts: Spatial segregation and asymmetrical distribution of mRNA across the cytosol in the soybean nodule.

- Molecular Cartography&trade; data provided by the Libault Lab

.pull-left[
![](../figs/Infected_Cells_05G216000_red_05G092200_green.jpg)
Infected soybean nodule cells. Glyma.05G092200 in green. Glyma.05G216000 in red.
]

.pull-right[

**Goals**: "How *patterny* is a pattern?"

- Quantify the spatial patterns followed by mRNA within individual cells.
- Mathematically model all observed mRNA sub-cellular distributions.
- *Use this mathematical model to differentiate cell types and genotypes.*

**Challenge**

- Develop a mathematical model that works for any cell size, orientation, shape, and dimension.

]

---

class: inverse, middle, center

# 1. mRNA localization to characterize cell types

### 2. Topological Data Analysis (TDA) to model localization patterns

### 3. Results and discussion

---

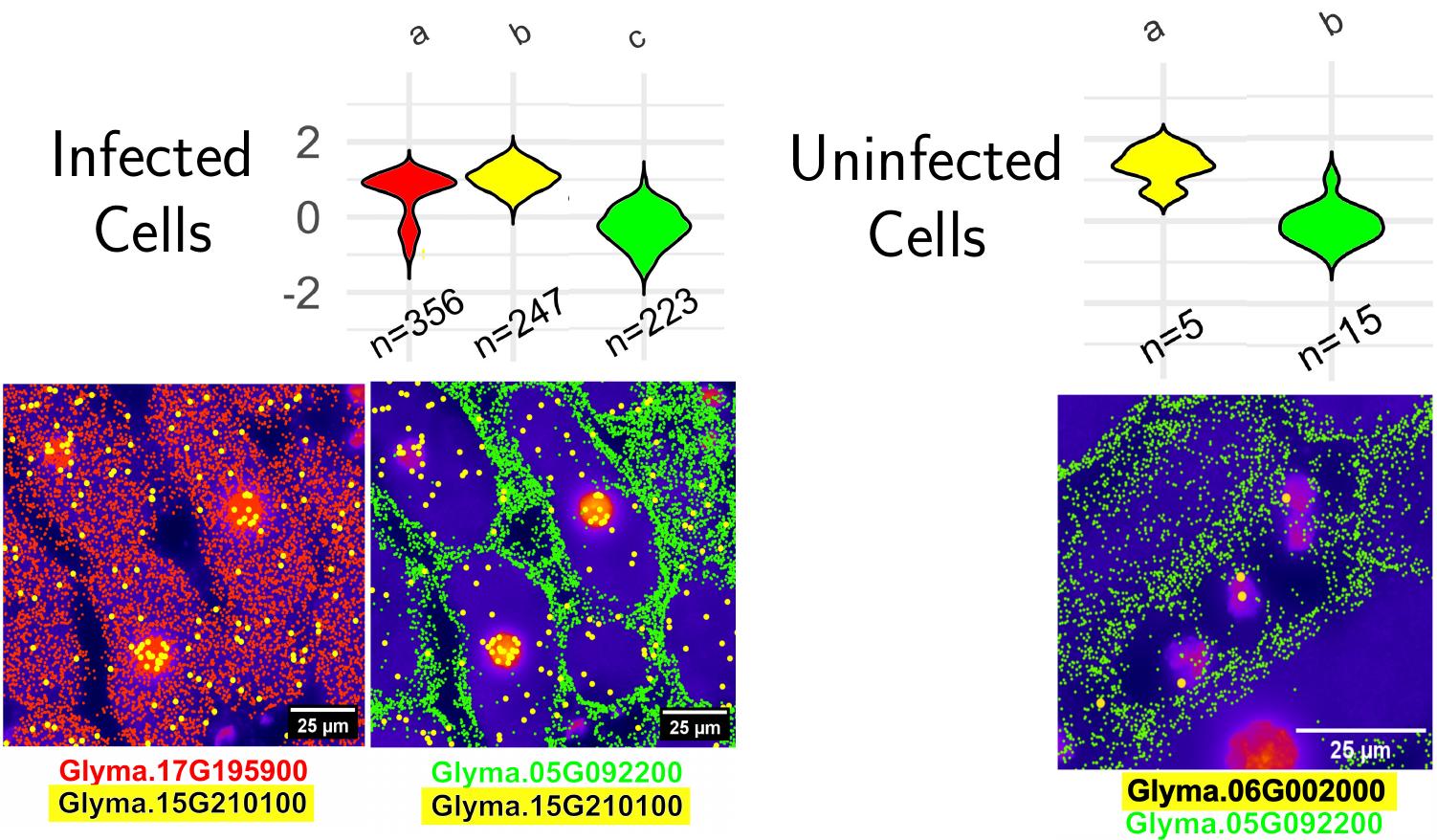

## Different nuclear versus cytosolic compartmentalizations across cell types

![](../figs/infected_density.jpg)

---

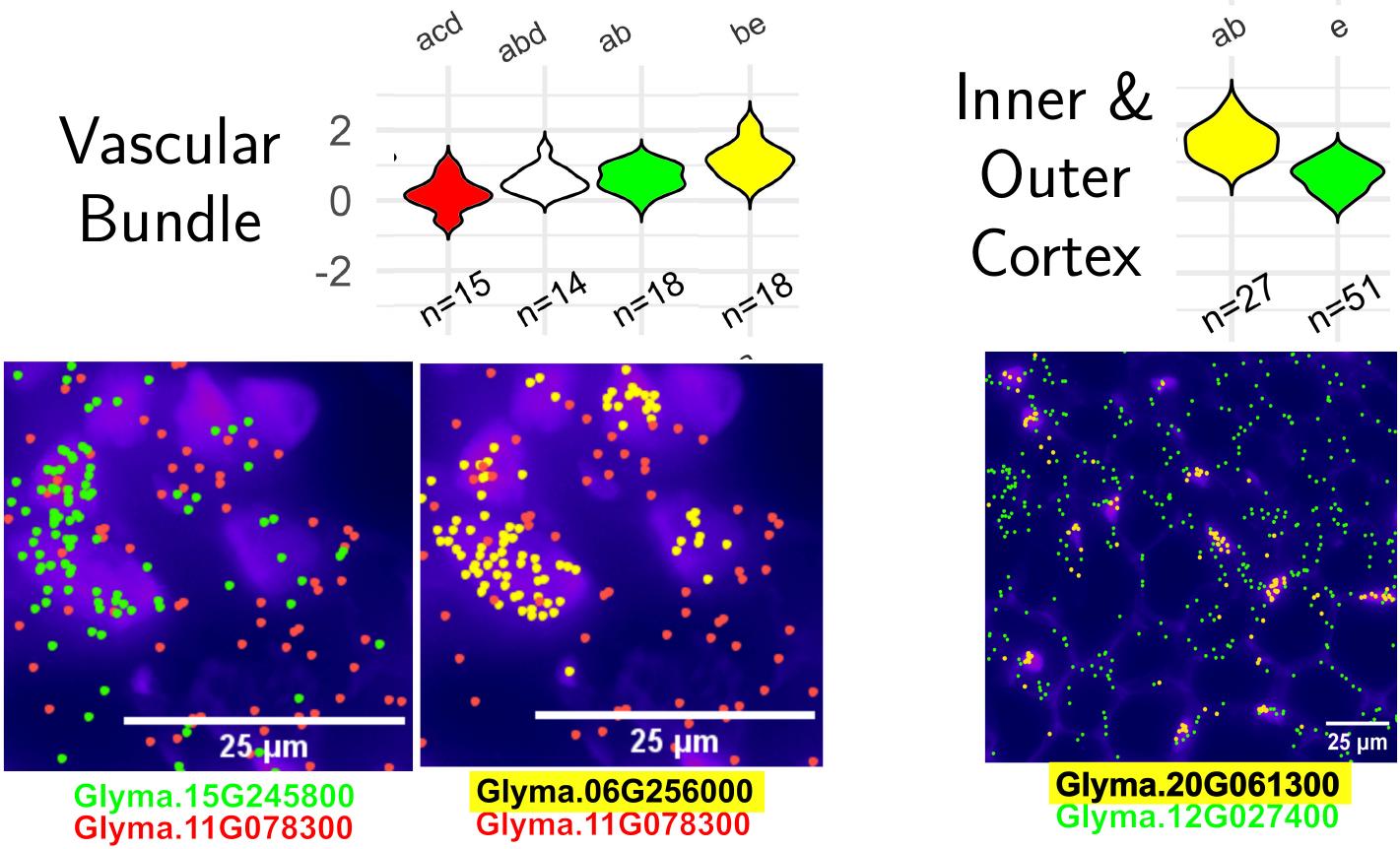

## Different nuclear versus cytosolic compartmentalizations across cell types

![](../figs/vascular_density.jpg)

---

# Density of transcripts versus cell location

![](../figs/sublevel_both_bw3_S25_rho_cyto_GLYMA_05G092200.png)
![](../figs/sublevel_both_bw3_S25_rho_cyto_GLYMA_17G195900.png)

But this characterization discards sub-cellular information!

---

# Same density, different patterns

![](../figs/molecular_cartography_2x4.png)

- 97 genes (including 10 bacterial ones) &rarr; 6 genes
- 2938 cells &rarr; 918 infected ones.

**Subcellular transcript patterns &harr; spatial location of the cell within the nodule**

---

# How *patterny* is a pattern?

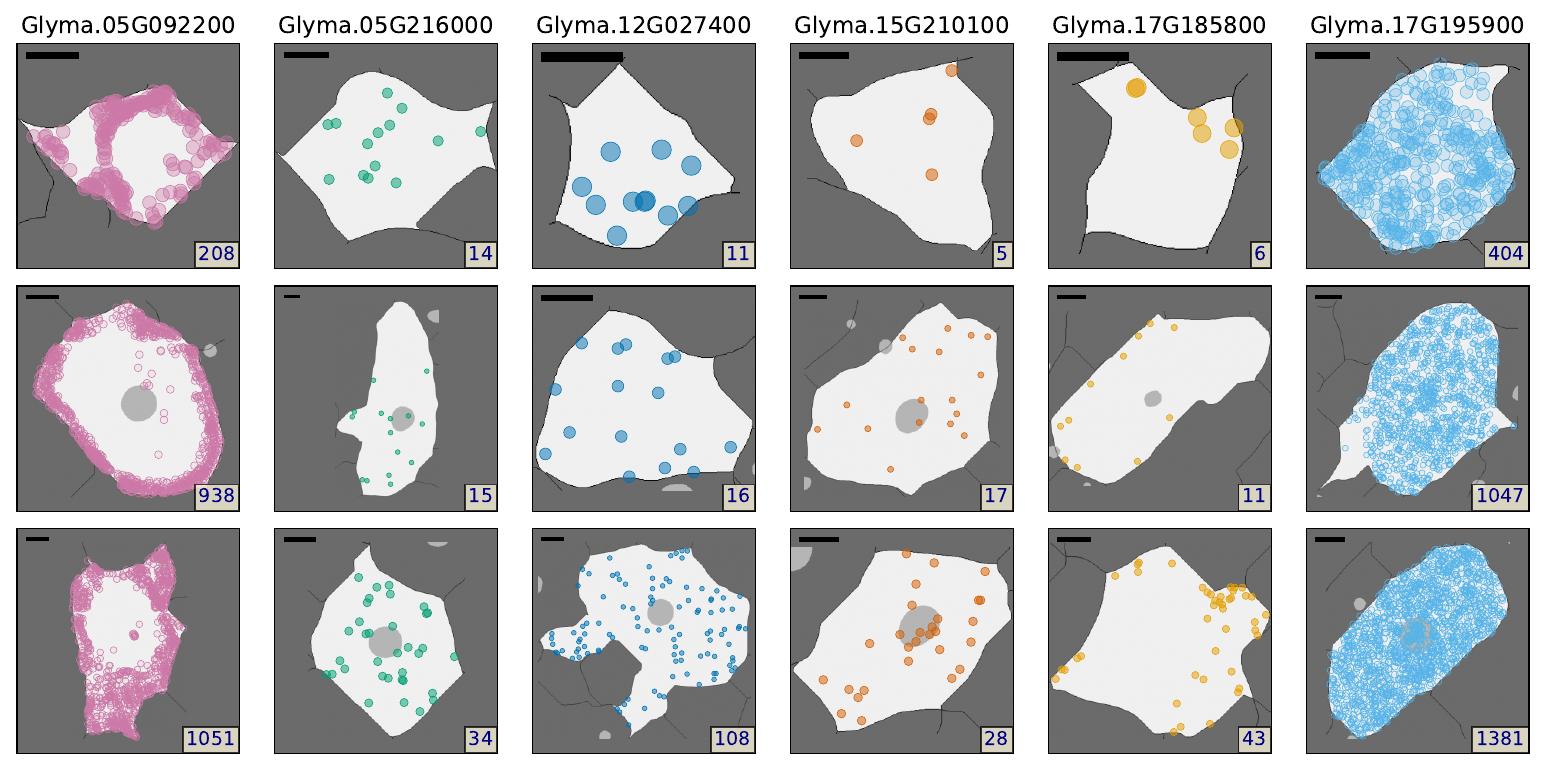

![](../figs/cell_sample.jpg)

Patterns are subject to a large variety of cell shapes, sizes, orientations, and mRNA quantities.

---

class: inverse, middle, center

### 1. mRNA localization to characterize cell types

# 2. Topological Data Analysis (TDA) to model localization patterns

### 3. Results and discussion

---

# Modeling with Topological Data Analysis

![](../figs/GLYMA_05G092200_TDA_c02352_00.png)

---
# Modeling with Topological Data Analysis

![](../figs/GLYMA_05G092200_TDA_c02352_01.png)

---
# Modeling with Topological Data Analysis

![](../figs/GLYMA_05G092200_TDA_c02352_02.png)

---
# Modeling with Topological Data Analysis

![](../figs/GLYMA_05G092200_TDA_c02352_03.png)

---
# Modeling with Topological Data Analysis

![](../figs/GLYMA_05G092200_TDA_c02352_04.png)

---
# Modeling with Topological Data Analysis

![](../figs/GLYMA_05G092200_TDA_c02352_05.png)

---
# Modeling with Topological Data Analysis

![](../figs/GLYMA_05G092200_TDA_c02352_06.png)

---
# Modeling with Topological Data Analysis

![](../figs/GLYMA_05G092200_TDA_c02352_07.png)

---
# Modeling with Topological Data Analysis

![](../figs/GLYMA_05G092200_TDA_c02352_08.png)

---
# Modeling with Topological Data Analysis

![](../figs/GLYMA_05G092200_TDA_c02352_09.png)

---
# Modeling with Topological Data Analysis

![](../figs/GLYMA_05G092200_TDA_c02352_10.png)

---
# Modeling with Topological Data Analysis

![](../figs/GLYMA_05G092200_TDA_c02352_11.png)

---

# Rotate 45 degrees for ML ammenability

![](../figs/GLYMA_05G092200_TDA_c02352_12.png)

---

# TDA: From patterns to numbers

![](../figs/GLYMA_05G092200_TDA_c02352_13.png)

---

class: inverse, middle, center

### 1. mRNA localization to characterize cell types

### 2. Topological Data Analysis (TDA) to model localization patterns

# 3. Results and discussion

---

# Focus on `\(H_1\)` and `\(H_2\)`

<img src="../figs/molecular_cartography_2x4.png" width="500" style="display: block; margin: auto;" />

<img src="../figs/persistence_images_2x4.png" width="600" style="display: block; margin: auto;" />

---

background-image: url("../figs/bw25_scale32_-_PI_1_1_1_H1+2_cell_sample.png")
background-size: 620px
background-position: 75% 99%

# PCA on all topological descriptors

<img src="../figs/bw25_both_scale16_-_PI_1_1_1_pca_H1+2_gridded.png" width="350" style="display: block; margin: auto auto auto 0;" />

---

background-image: url("../figs/bw25_scale32_-_PI_1_1_1_H1+2_kde_sample.png")
background-size: 620px
background-position: 99% 50%

.left-column[

### PC 1
- Related to the number of distinct hotspots
- Correlated to transcript number and cell size

### PC 2
- Related to the heterogeneity of hotspots
- Correlated to transcript density

]

---

# Connecting PC 02 to the biological context

![](../figs/GLYMA_17G195900_bw15_PI_scale24_fulleccentricity_correlations.png)

- Senescent cells exhibit a distinct transcriptomic spatial pattern compared to the rest of population.
- Loss of mRNA localization may be a lesser known contributor to cell senescence.

---

# We define a morphospace of transcriptomic patterns

![](../figs/bw25_both_scale16_-_PI_1_1_1_pca_H1+2_gridded.png)

# We then work "backward"

---

class: bottom

background-image: url("../figs/scale32_-_PI_1_1_1_H1+2_synthetic_30_clusters.jpg")
background-size: 900px
background-position: 50% 1%

<img src="../figs/scale32_-_PI_1_1_1_H1+2_synthetic_pca_30_clusters.jpg" width="600" style="display: block; margin: auto;" />

---

class: bottom

background-image: url("../figs/scale32_-_PI_1_1_1_H1+2_synthetic_varclusters.jpg")
background-size: 900px
background-position: 50% 1%

<img src="../figs/scale32_-_PI_1_1_1_H1+2_synthetic_pca_varclusters.jpg" width="600" style="display: block; margin: auto;" />

---

# Discussion and future directions

**Biologically speaking**

- Senescent cells exhibit a distinct transcriptomic spatial pattern compared to the rest.
- Loss of mRNA localization may be a lesser known contributor to cell senescence.
- *How does the **morphospace of patterns** change if we take into account more genes, more cell types, more tissues, and more mutants?*

**Mathematically speaking**

- Topological Data Analysis offers a robust way to encode the shape of patterns.
- Robust to differences in scale, underlying boundaries, or orientation.
- *Be much more **systematic** to generate and evaluate synthetic spatial patterns*

<img src="../figs/D2_GLYMA_05G092200_z_kde_pd_suplevel_by_both_00512.jpg" width="550" style="display: block; margin: auto;" />

---

class: inverse

# Thank you!

<div class="row">
  <div class="column" style="max-width:60%; font-size: 15px;">
    <img style="padding: 0 0 0 0;" src="https://bondlsc.missouri.edu/wp-content/uploads/2023/11/libault-returns-to-bond-lsc-as-plant-scientist-with-single-cell-focus-1.jpg">
  </div>
  <div class="column" style="max-width:40%; font-size: 24px; line-height:1.25">
  <p style="text-align: center;"><strong>Contact and slides:</strong></p>
  <p style="text-align: center;color:Blue">eah4d@missouri.edu</p>
  <p style="text-align: center;color:Blue">ejamezquita.github.io</p>
  </div>
</div>

<div class="row">
  <div class="column" style="max-width:35%; font-size: 20px;">
  <p style="font-size: 25px; text-align: center;"> Libault Lab (MU) </p>
    <ul>
      <li><strong>Marc Libault</strong></li>
      <li><strong>Sandra Thibivillers</strong></li>
      <li>Hengping Xu</li>
      <li>Sahand Amini</li>
      <li>Hong Fu</li>
      <li><strong>Sutton Tennant</strong></li>
      <li>Md Sabbir Hossain</li>
    <ul>
  </div>
  <div class="column" style="max-width:65%; font-size: 20px;">
  <p style="font-size: 25px; text-align: center;"> With help from:</p>
    <ul>
      <li>Sai Subash (Nebraska-Lincoln)</li>
      <li>Benjamin Smith (UC Berkeley)</li>
      <li>Sergio Cervantes-Perez (Arizona)</li>
      <li>Samik Bhattacharya (Resolve Biosciences)</li>
      <li>Jasper Kläver (Resolve Biosciences)</li>
    <ul>
  </div>
</div>

Manuscript under review

---

# Mathematical motivation: stability

- [**Theorem (Cohen-Steiner, Edelsbrunner, Harer, 2007)**](https://doi.org/10.1007/s00454-006-1276-5): Given a nice enough topological space `\(\mathbb{X}\)` and two nice enough filtration functions `\(f,g:\mathbb{X}\to\mathbb{R}\)`, then
`$$d_B(\text{dgm}(f), \text{dgm}(g)) \leq \|f-g\|_\infty,$$`

- where `\(d_B\)` is the bottleneck distance.

- **Translation**: If the original complex wiggles a tiny bit, then the elements of its related persistence diagram will wiggle only a tiny bit as well.

## However

- Outside stable distances, it is hard to do anything interesting in the space of persistence diagrams.

- E.g.: there are no unique means!

- Hard to perform Machine Learning directly with persistence diagrams

---

# Mathematical justifications

- **Definition:** Given two persistence diagrams `\(D_1, D_2\)`, for `\(1\leq p<\infty\)`, we define the *p-Wasserstein* distance between them as
`$$W_p(D_1, D_2) := \inf_{\gamma:D_1\to D_2}\left(\sum_{u\in D_1} \left\| u-\gamma(u) \right\|_\infty^p\right)^{1/p},$$`
where the infimum is over all possible bijections `\(\gamma: D_1\to D_2\)`.

- **Theorem [[Mileyko *et al* (2011)](https://doi.org/10.1088/0266-5611/27/12/124007)]:** For nice filtrations, the persistence diagrams are Wasserstein-stable under small perturbations of the data they summarize.

- **Theorem [[Adams *et al.* (2017)](http://jmlr.org/papers/v18/16-337.html)]:** The persistence image `\(I(D)\)` of a persistence diagram `\(D\)` with Gaussian distributions is stable with respect to the 1-Wasserstein distance between diagrams.

### If the overall shape/pattern is perturbed a little bit, then the resulting persistence images are perturbed only a little bit as well

---

# Software used

.pull-left[
- All the work has been done in python with mostly standard libries (`numpy`, `scikit-learn`, `matplotlib`, `pandas`, etc.)

- KDEs computed efficiently with [`KDEpy`](https://kdepy.readthedocs.io/en/latest/)

- Sublevel set filtration of images and persistence diagrams done with [`gudhi`](https://gudhi.inria.fr/)

![](https://gudhi.inria.fr/assets/img/logo.png)
]

.pull-right[
- Persistence Images computed with [`persim`](https://persim.scikit-tda.org/en/latest/)

![](https://persim.scikit-tda.org/en/latest/_static/logo.png)
]
